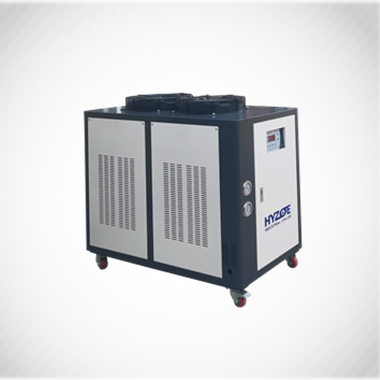

Oil cooler

Features and functions of industrial oil cooler units:

Industrial oil cooler is also called oil cooler; oil cooler, as a professional manufacturer of Shanghai HYZOE Refrigeration Equipment Co., Ltd., specializes in the production of HZO oil coolers, mainly used in CNC machining centers, hydraulic equipment, washing machine equipment, platen press equipment , Casting equipment, laser processing, machine tool cutting, lubrication equipment, high-speed spindle, power equipment and other cooling equipment, is an indispensable auxiliary auxiliary equipment for industrial cooling.

Model overview:

(I) Application

● Mechanical spindle and low-speed electric spindle of CNC machine tools;

● Hydraulic and lubrication stations for CNC machine tools, hydraulic presses and various mechanical equipment;

● Cooling of machining fluid in EDM equipment;

● Lubrication and cooling system of gearbox,

Such as: German ZF reduction gearbox, Italian BF reduction gearbox and homemade gearbox.

(Two), functions and characteristics

● The control system adopts LCD Chinese-English computer controller for easy and intuitive operation.

● It has two control modes: "fixed temperature" and "room temperature co-adjustment", users can choose according to actual needs;

● It has a variety of protection functions and provides passive alarm terminals to feedback fault signals to the CNC system of the machine tool;

● Provide external start terminal, easy to realize the linkage control of machine tool and oil cooler;

● Provide RS485 communication interface to realize communication with the host;

● Prevent the spindle of CNC machine tools from affecting machining accuracy due to changes in oil temperature;

● Prevent the spindle center of CNC machine tools from shifting or thermal deformation, stabilize the machine tool accuracy and extend the service life of the machine tool

● Prevent oil quality deterioration caused by excessive oil temperature, maintain oil viscosity characteristics, stabilize oil pressure and avoid oil shock.

Oil cooler hoisting requirements

● During the hoisting or transportation of the oil cooler, do not tilt it more than 30 °, or subject it to an impact. Do not invert it, otherwise the oil cooler may be damaged. For hoisting rings on the top of the oil cooler or channel steel base, all use is required during hoisting. The hoisting rings on the top must be diagonally pulled, and the hoisting rings on the base must be pulled across the body. Body overturns!) To ensure uniform and stable force. Protective measures must be taken in advance if the hoisting rope will scratch the oil cooler door panel during lifting. Abrupt lifting during lifting is prohibited.

● The oil cooler should be installed in a well-ventilated and clean air environment. There should be no dust or corrosive bodies around it, and there should be no high-temperature heat source radiation nearby. At the same time, avoid direct sunlight on the body. If installed outdoors, rain and sun protection measures should be taken.

Installation foundation

● The structure of the installed foundation should be able to fully bear the total weight of the oil cooler, and the horizontal inclination of the foundation must not be greater than 5. For the immersion oil cooler, the box used as the installation base can support the base of the oil cooler. The copper coils must be immersed below the liquid surface, otherwise the cooling capacity will be lost and condensed water will be produced, which will degrade the oil.

Note: It is forbidden to install the oil cooler on the basis of vibration or shaking, otherwise the internal pipeline of the oil cooler may be cracked.
